Press - Production Waste


Adding Production Waste Scales

Step     Action

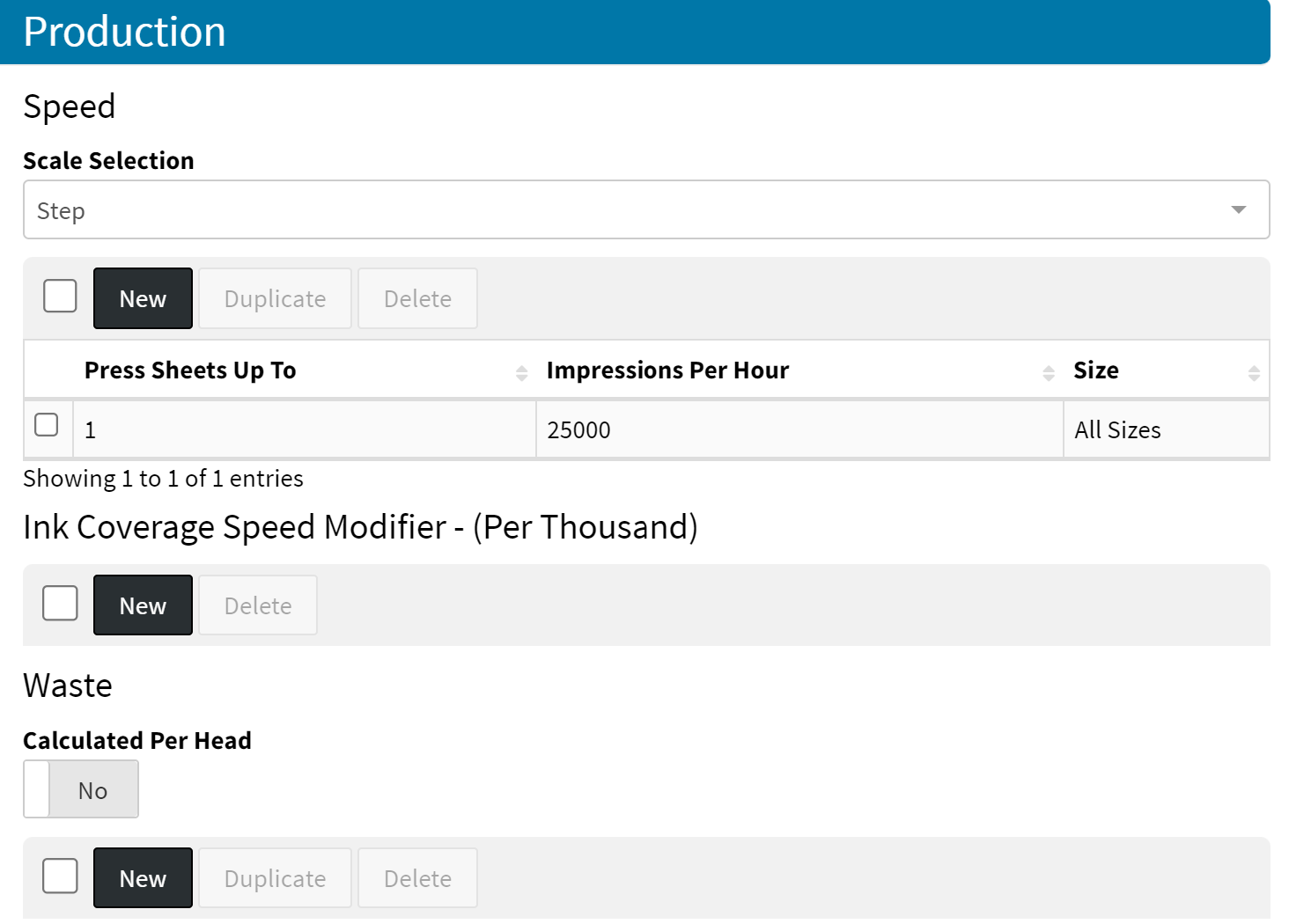

  1.      Select {Production} on the right-hand side of screen to auto scroll to

          Production section.


  2.     Select {New} under Waste.



            Note: On offset/perfector/web presses, before selecting {New} an option

          will be available to select whether or not to Calculate Waste Per Head

          Default set to Yes.

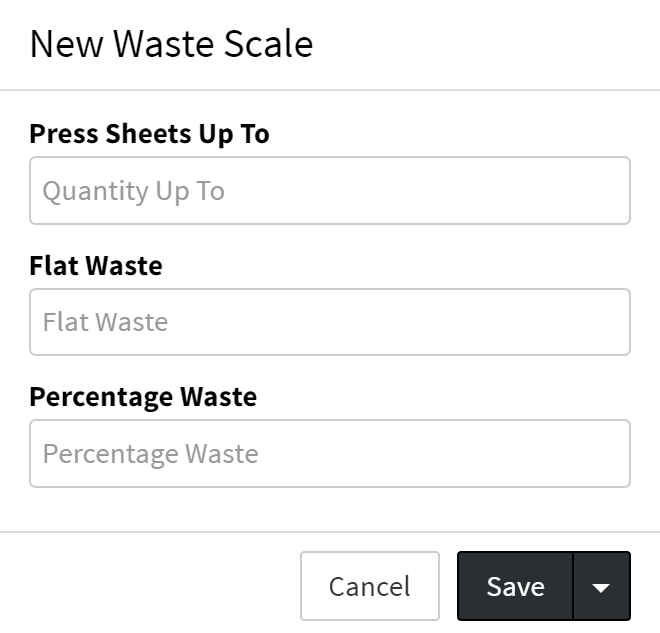

         A New Waste Scale modal window will open.



  3.      Complete the fields.

Field
Description
Quantity Up To

 Enter in the end quantity for the waste scale.

i.e.  1st Scale: 500 (from 1 -500)
      2nd Scale: 1000 (from 501 - 1000)

Flats Overs

Enter the Flat Overs.


Flat Overs are the amount of sheets that you calculated per job.

Percentage Overs

Enter the Percentage Overs.


Percentage Overs are the percentage added to the job by calculating the press run by the percentage entered.



  4.      Select {Save} option

Field
Description
Save

Use to add a single waste scale. A results window will pop-up to indicate the scale has been saved.


Select X to close pop up results window.
Save & Add New
Use to save and add additional waste scales. A results window will pop-up to indicate the scale has been saved and the Waste Scale modal window will remain open.



Add additional waste scales as required.




Editing Production Waste Scales

Step     Action

  1.      Select {Production} on the right-hand side of screen to auto scroll to

             Production section.

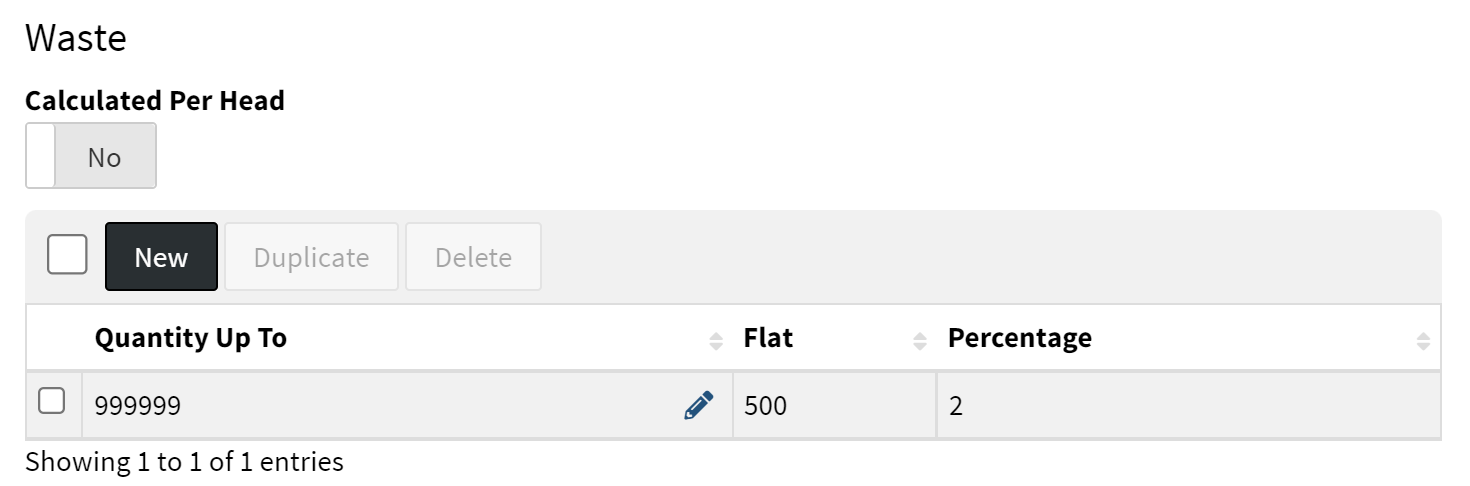

  2.      Hover mouse over the name of waste scale to be edited. A pencil icon

             will appear on the right-hand side of the name. Select the pencil icon.

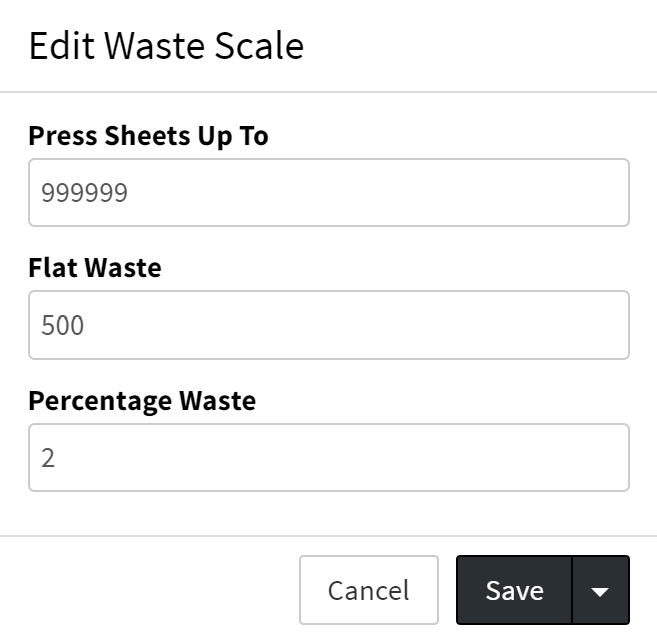

           A modal Edit Waste Scale window will open.


  3.      Make required changes.

  4.       Select {Save} option

Field
Description
Save

Use to add a single waste scale. A results window will pop-up to indicate the scale has been saved.




Select X to close pop up results window.
Save & Add New
Use to save and add additional waste scales. A results window will pop-up to indicate the scale has been saved and the Waste Scale modal window will remain open.



Add additional waste scales as required.



Deleting Production Waste Scales

Step     Action

  1.      Select {Production} on the right-hand side of screen to auto scroll to

             Production section.

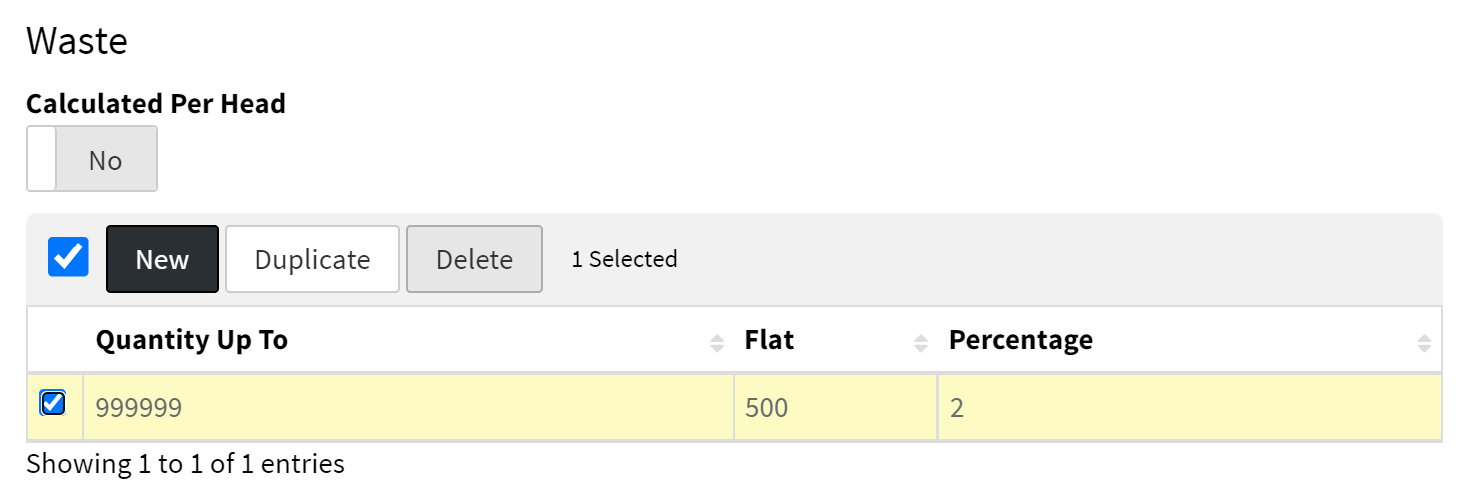

  2.      Select entries under Waste to be deleted by checking boxes on the

             left-hand side. All entries can be deleted by checking box to left of

          {New} under Waste.


  3.    Select {Delete}. A window will pop-up to confirm selected items to be

          deleted.


  4.      Select {OK} to delete selected items. A results window will pop-up to

             indicate the selected scales have been deleted.


  5.      Select X to close pop up results window.

Duplicating Production Waste Scales

Step     Action

  1.      Select {Production} on the right-hand side of screen to auto scroll to

             Production section.

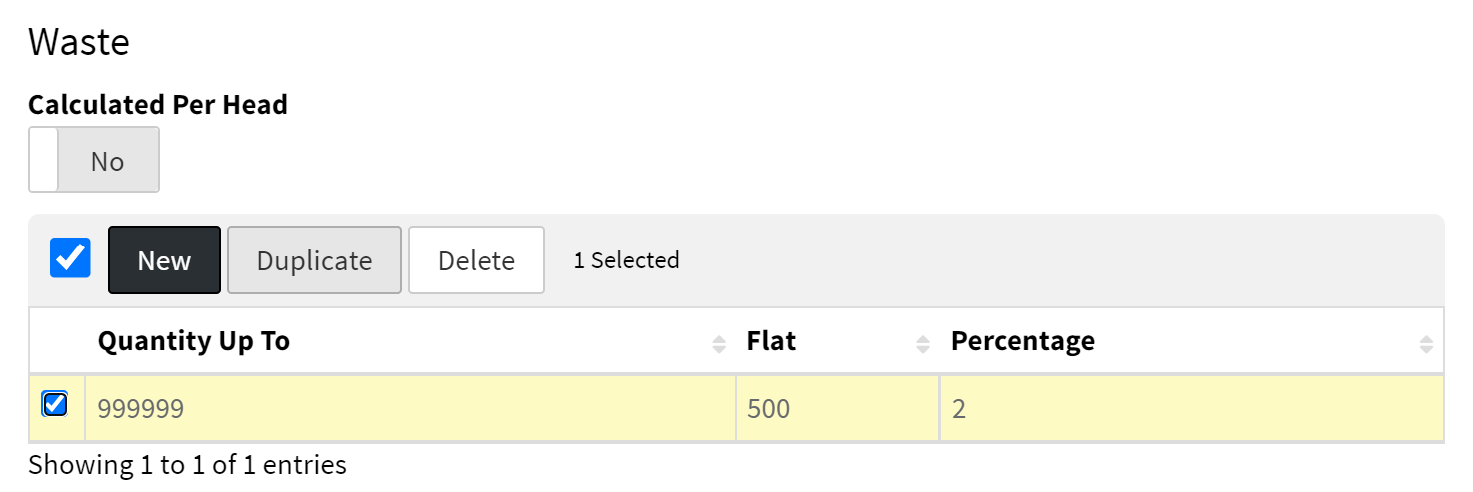

  2.      Select entries under Waste to be duplicated by checking boxes on the

             left-hand side. All entries can be duplicated by checking box to left of

          {New} under Waste.


  3.     Select {Duplicate}. A results window will pop-up to indicate the selected

           scales have been duplicated. The duplicated scale will appear under Waste.



  4.      Select X to close pop up results window.
