Press - Offset/Perfector/Web Pricing - Ink Coverage Speed Modifier

Adding Ink Coverage Speed Modifier

Step     Action

  1.      Select {Pricing} on the right-hand side of screen to auto scroll to Pricing

            section.

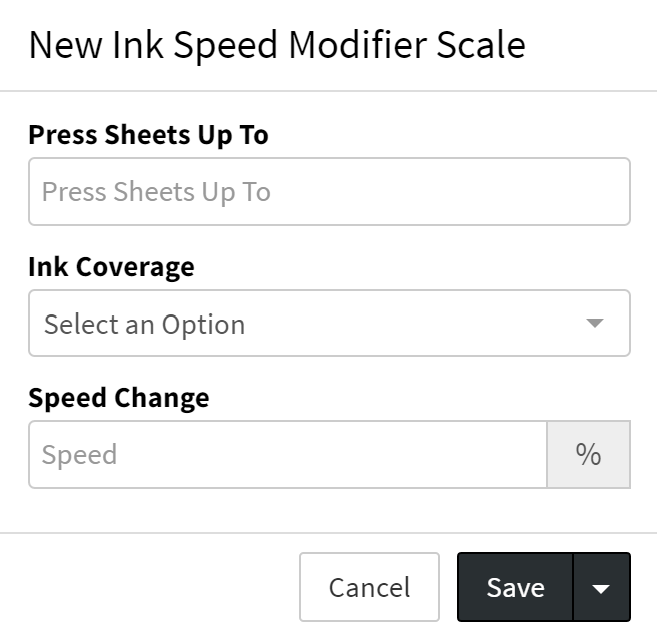

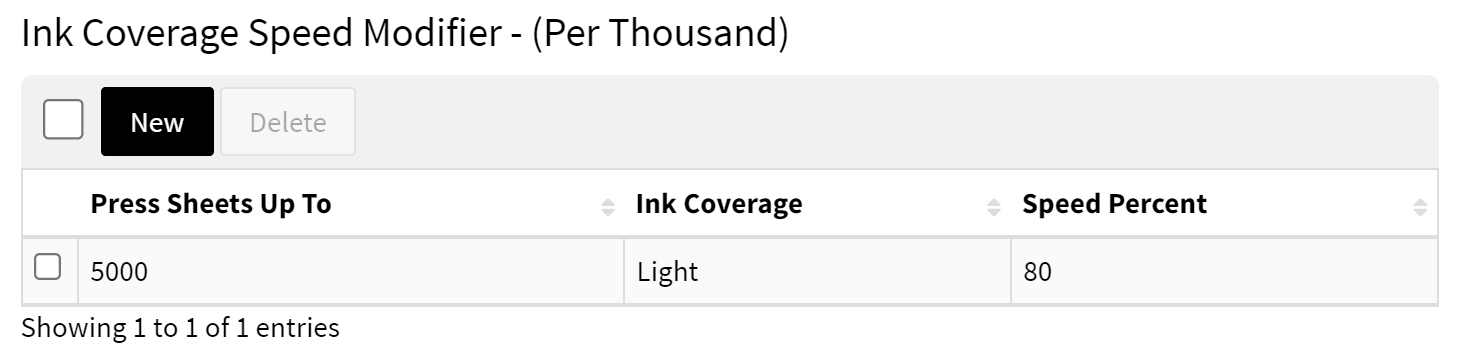

  2.      Select {New} under Ink Coverage Speed Modifier. A New Ink Speed

             Modifier Scale modal window will open.


  3.      Complete the fields.

Field
Description
Press Sheets Up To
Enter in the end quantity for press sheets.

i.e.  1st Scale: 500 (from 1 -500)
      2nd Scale: 1000 (from 501 - 1000)

Ink Coverage

Select Ink Coverage option from the drop-down.

Speed Change

Enter value for the percentage of decrease or increase to speed.

i.e.  80 - reduces speed by 80%

      110 - increases speed by 10%


  4.      Select {Save} option

Field
Description
Save

Use to add a single scale. A results window will pop-up to indicate the scale has been saved.

Select X to close pop up results window.
Save & Add New
Use to save and add additional scales. A results window will pop-up to indicate the scale has been saved and the New Ink Speed Modifier Scale modal window will remain open.


Add additional scales as required.


Editing Ink Coverage Speed Modifier

Step     Action

  1.      Select {Pricing} on the right-hand side of screen to auto scroll to Pricing

            section.

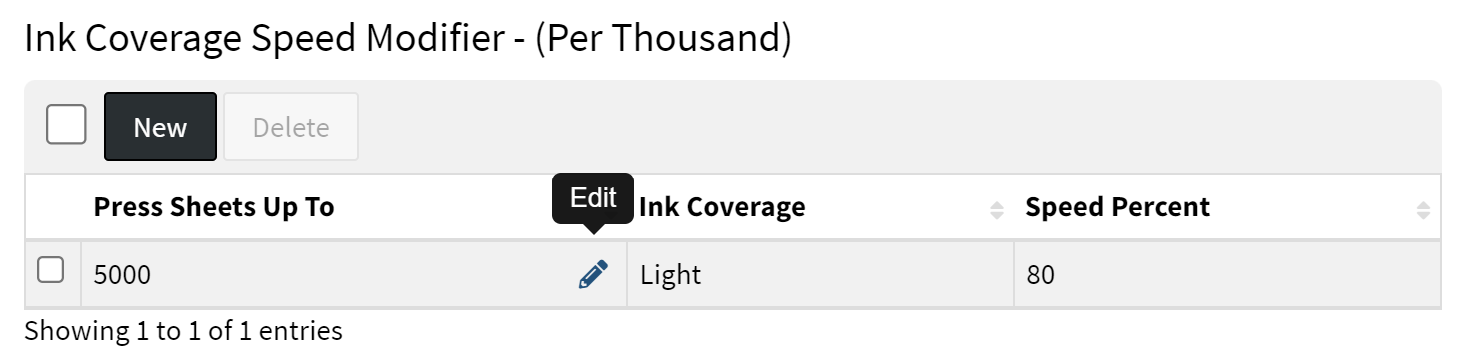

  2.      Hover mouse over the name of ink coverage speed modifier scale to be

          edited. A pencil icon will appear on the right-hand side of the name. Select

          the pencil icon.


           A modal Edit Ink Speed Modifier Scale window will open.


  3.      Make required changes.

  4.       Select {Save} option

Field
Description
Save

Use to add a single scale. A results window will pop-up to indicate the scale has been saved.



Select X to close pop up results window.
Save & Add New
Use to save and add additional scales. A results window will pop-up to indicate the scale has been saved and the New Ink Speed Modifier Scale modal window will remain open.


Add additional scales as required.



Deleting Ink Coverage Speed Modifier

Step     Action

  1.      Select {Pricing} on the right-hand side of screen to auto scroll to Pricing

            section.

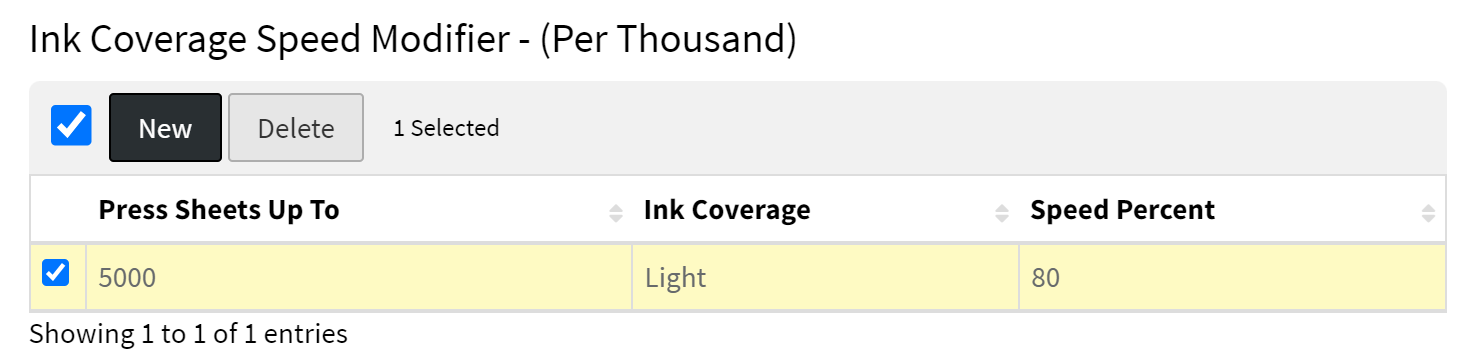

  2.     Select entries under Ink Coverage to be deleted by checking boxes on the

          left-hand side. All entries can be deleted by checking box to left of {New}

          under Ink Coverage.


  3.      Select {Delete}. A window will pop-up to confirm selected items to be

          deleted.


  4.      Select {OK} to delete selected items. A results window will pop-up to

          indicate the selected scales have been deleted.


  5.      Select X to close pop up results window.
