Items - Press


To navigate to Production Details edit mode, see Items-Production Details Edit Mode.


Note: Measurements will appear in imperial or metric depending on the Measurement Unit

selected in the Settings. (See Configuration-Measurement Units)


Step     Action

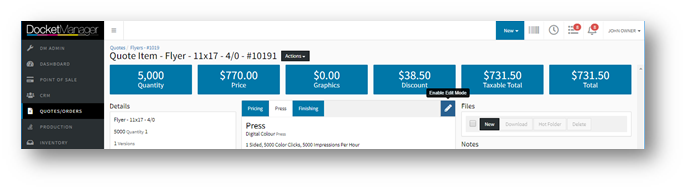

  1.       In an Order Item, enable Edit Mode by clicking pencil icon on the right-hand side.

  2.      Complete or edit the applicable fields under Press tab.



            Note: If the stock name has been customized, it will appear with the customized name under the Item

            summary on the Press tab.


            If Hot Folders have been enabled on the press, the Hot Folder field will be visible. An option can be

            selected from the drop-down or a path can be directly entered in the text field.



Press

Fields and Descriptions

Digital

Rate Per Hour

Enter the Rate Per Hour for the press.

Number of Sides

Select 1 or 2 from the drop-down menu.

Single Sided

Enter value in applicable field if the press is black or color.

Double Sided

(Only appears if Number of Sides set to 2)

Enter value in applicable field if the press is black, color, or mixed.

Side 1/Side 2

(Side 2 fields only appears if Number of Sides set to 2)

Setup Minutes - Enter value for setup time.
Impressions Per Hour - Enter value for impression per hour.
PMS Inks - Select a PMS Ink from the drop-down menu then select {Add}. A window will pop-up to confirm PMS Ink successfully saved.

Offset/Web/Perfector

Workturn

Enter value for Workturn, if applicable.

Method

Select Workturn or Work Tumble from the drop-down menu, if applicable.

Ink Coverage

Select Light, Heavy, or Average Ink Coverage from the drop-down menu.

Rate Per Hour

Enter the Rate Per Hour for the press.

Number of Sides

Select 1 or 2 from the drop-down menu.

Double Sided

(Only appears if Number of Sides set to 2)

Enter value in applicable field if the press is black, color, or mixed.

Side 1/Side 2

(Side 2 fields only appears if Number of Sides set to 2)

Passes - Enter value for number of passes.
Inks - Enter value for number of inks.
Plates - Enter value for number of plates.
Plate Price - Enter value for plate price.
Setup Minutes - Enter value for setup time.
Impressions Per Hour - Enter value for impression per hour.
Aqueous Coating - Select Yes or No from the drop-down.
PMS Inks - Select a PMS Ink from the drop-down menu then select {Add}. A window will pop-up to confirm PMS Ink successfully saved.

Wide Format


Type

Select Roll, Board, or Both from drop-down menu.

Mode

Select a Mode from the drop-down menu.

Rate Per Hour

Enter the Rate Per Hour for the press.

Number of Sides

Select 1 or 2 from the drop-down menu.

Double Sided

(Only appears if Number of Sides set to 2)

Enter value in applicable field if the press is black, color, or mixed.

Side 1

Price Per Sqft/Sqm - Enter value for price per sqft/sqm.
Setup Minutes - Enter value for setup time.
Sqft Per Hour - Enter value for sqft per hour.
PMS Inks - Select a PMS Ink from the drop-down menu then select {Add}. A window will pop-up to confirm PMS Ink successfully saved.

Side 2

(Only appears if Number of Sides set to 2)

Setup Minutes - Enter value for setup time.
Sqft/Sqm Per Hour - Enter value for sqft/sqm per hour.
PMS Inks - Select a PMS Ink from the drop-down menu then select {Add}. A window will pop-up to confirm PMS Ink successfully saved.

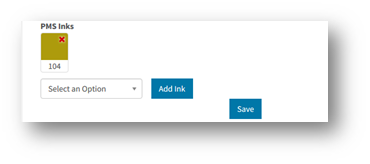

         Note: PMS Inks can be removed by hovering mouse over color and then

         selecting the X that appears. A window will pop-up to confirm PMS Ink

         successfully removed.

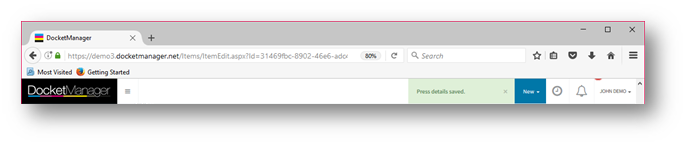

  3.      Select {Save}. A results window will pop-up to confirm the Press details saved.
