Presses - Adding an Offset/Perfector/Web Press


 Step     Action

  1.      Select {Settings} and then select {Press} under Dockets.

  2.      Select {New} under Press. A New Press page will open.

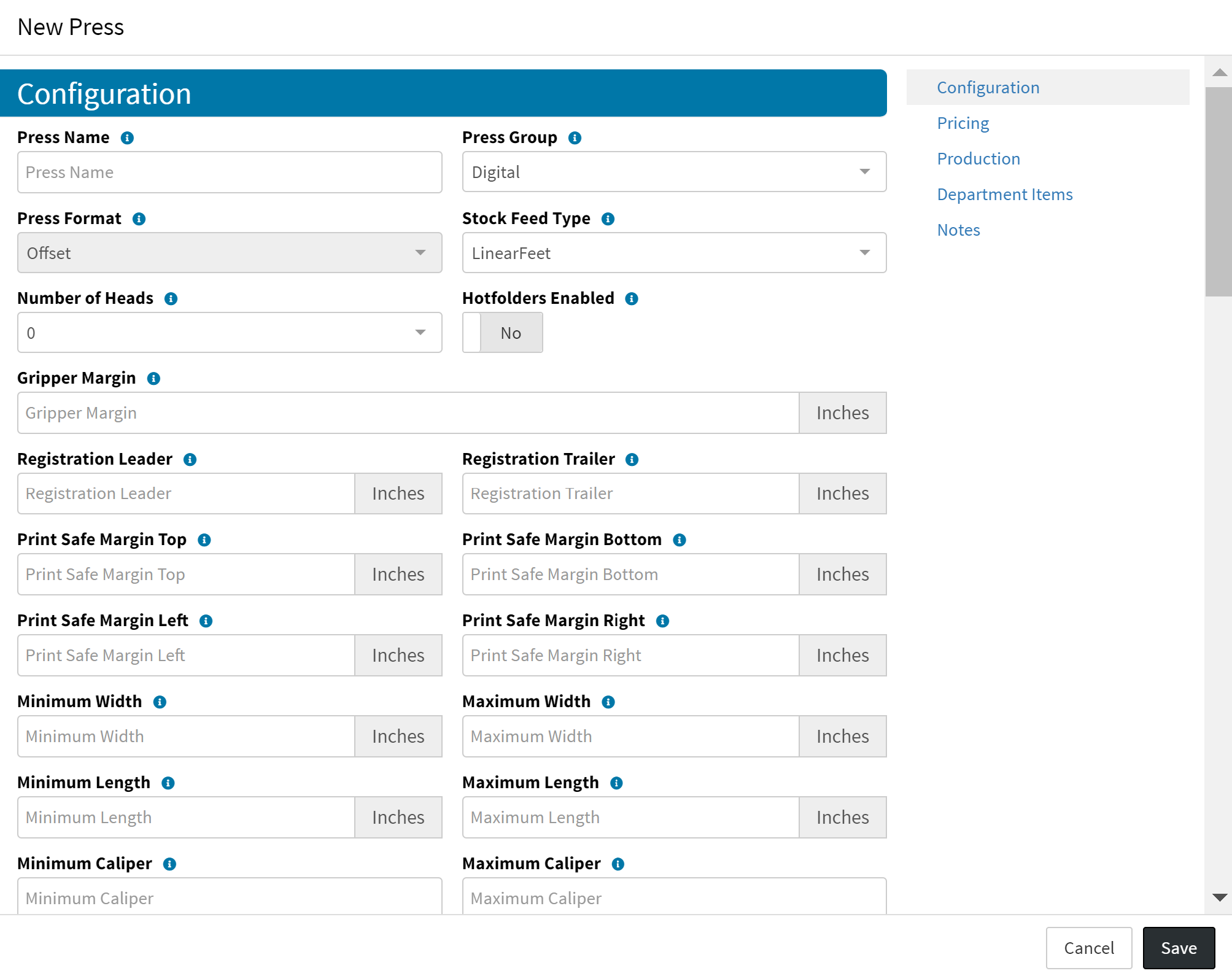

  3.    Complete the Configuration fields.

     Note: Measurements will appear in inches or centimetres depending on the Measurement Unit

         settings. (See Configuration-Measurement Units)


Field
Description
Name
Enter Name of press.
Group

Select a Group from the drop-down menu.

Note: These options can be modified. (See General-Group )
Format

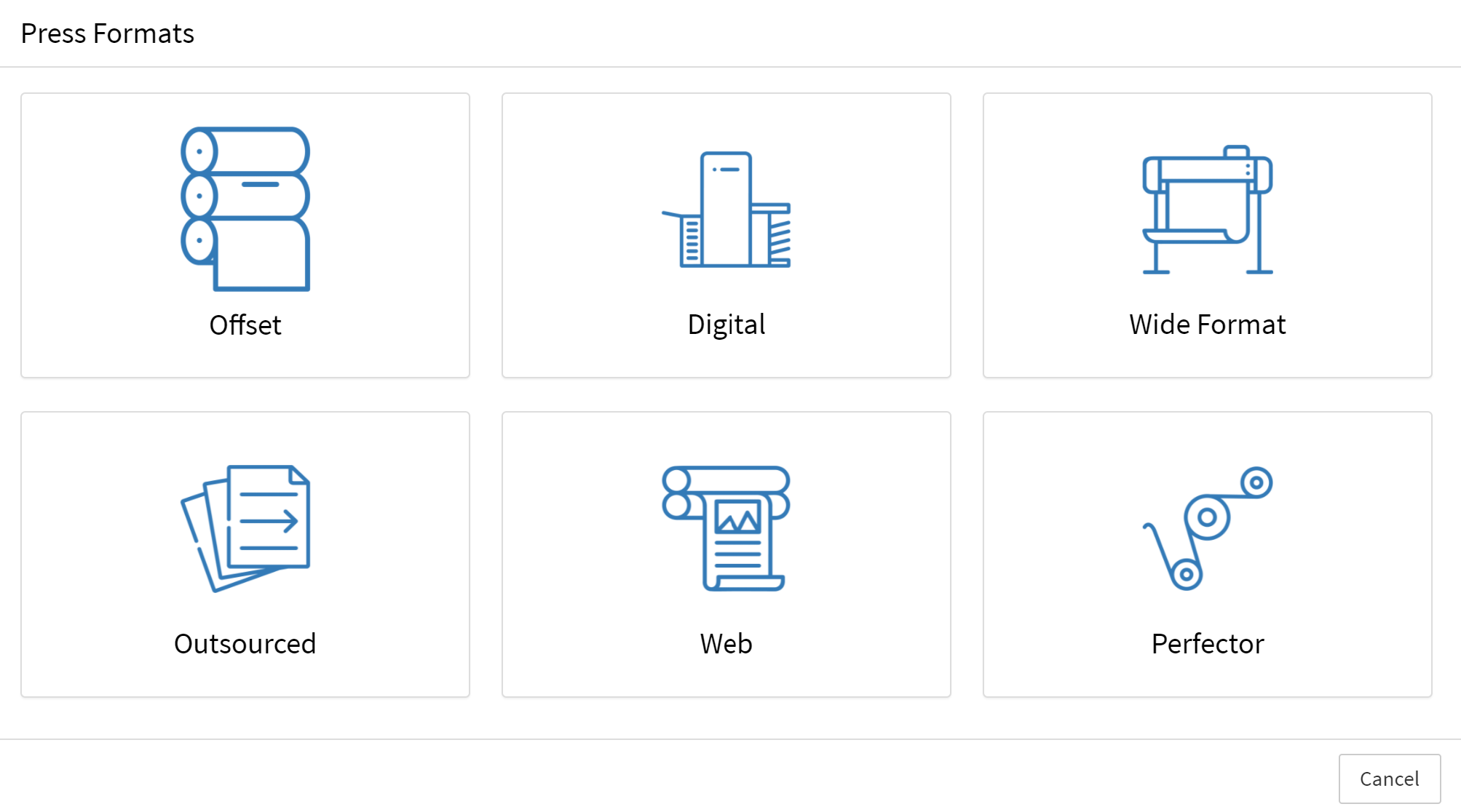

Select aOffset, Perfector, or Web Press Format from the drop-down menu.

Stock Feed Type


This controls the press sheets on order items. The default is set to what is Specified by Stock. To change, select a different option from the drop-down menu.
Number of Heads

Select the Number of Heads that this press has from the drop-down menu.

Run Cost Per Hour
Enter the Run Cost Per Hour.
Setup Time

Enter how long it takes to setup the press and do a wash up.

Additional Head Setup Time
Enter any Additional Head Setup Time.

Work Turn Option
Select a Work Turn option from the drop-down menu.
Work Turn Side 2 Setup Time
Enter Work Turn Side 2 Setup Time
Aqueous Coating Setup Time
Enter Aqueous Coating Setup Time.

Aqueous Coating Setup Price
Enter the cost of Aqueous Coating Setup.

Minimum Width

Enter the minimum width the press  will accept.


Minimum Length
Enter the minimum length the press will accept.
Maximum Width
Enter the maximum width the press will accept
Maximum Length
Enter the maximum length the press will accept.
Registration Leader
Enter the Registration Leader the press requires.
Registration Trailer
Enter the Registration Trailer the press requires.
Print Safe Margin Top

Enter the Print Safe Margin for the top of the page.

Print Safe Margin Bottom
Enter the Print Safe Margin for the bottom of the page.
Print Safe Margin Left
Enter the Print Safe Margin for the left side of the page.
Print Safe Margin Right
Enter the Print Safe Margin for the right side of the page.

Side 1 Max Color

Enter value for  Side 1 Max Color.

Side 2 Max Color

Enter value for  Side 2 Max Color.

Minimum Impressions

Enter quantity for the Minimum Impressions.

Maximum Impressions
Enter quantity for the Maximum Impressions.
Minimum Caliper
Enter value for the Minimum Caliper.
Maximum Caliper
Enter value for the Maximum Caliper.
Lift Height
Enter value for the Lift Height.
Lift Load Time
Enter value for the Lift Load Time.
Gripper Margin
Enter the Gripper Margin required for the press.
Roll Change Length
Enter value for the Roll Change Length.
Core Diameter
Enter value for the Core Diameter.
Hotfolders Enabled
Default set to No. Toggle switch to Yes if Hotfolders will be enabled for use with this press.
HotFolder Directory
Enter the Hot Folder Directory path. Select {Test Connection} to confirm remote connection.
Notes

Enter any additional notes regarding the press, if applicable.
GL Revenue Account

Select an account option from the drop-down that you would like the price of the Press posted to.



Note: These options can be modified. (See Accounting-GL Revenue Account)


  4.     Select {Save}. The page will now show the name of the new press.


            Pricing and Markups can also be added before leaving this page.



            Note: The option to add additional pricing and markup information will be

            available once the Configuration information has been saved and the new

            press page generated. (See Production-SpeedProduction-Waste

            Pricing-Hourly RatePricing-Plates, Pricing-Ink CoveragePricing-Ink

            Coverage Speed Modifier, Pricing-Aqueous Coating,

                Presses-Department Items, and General-Notes)
