Presses - Adding a Wide Format Press

 Step     Action

  1.      Select {Settings} and then select {Press} under Dockets.

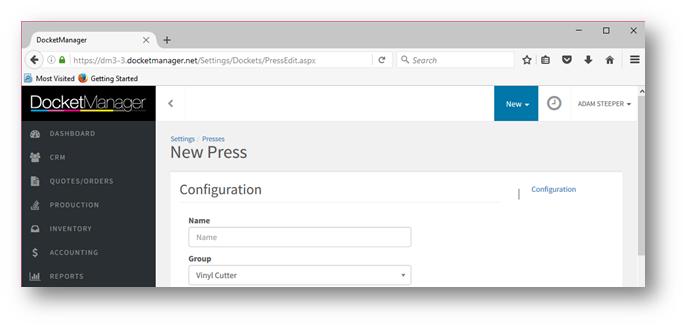

  2.      Select {New} under Press. A New Press page will open.

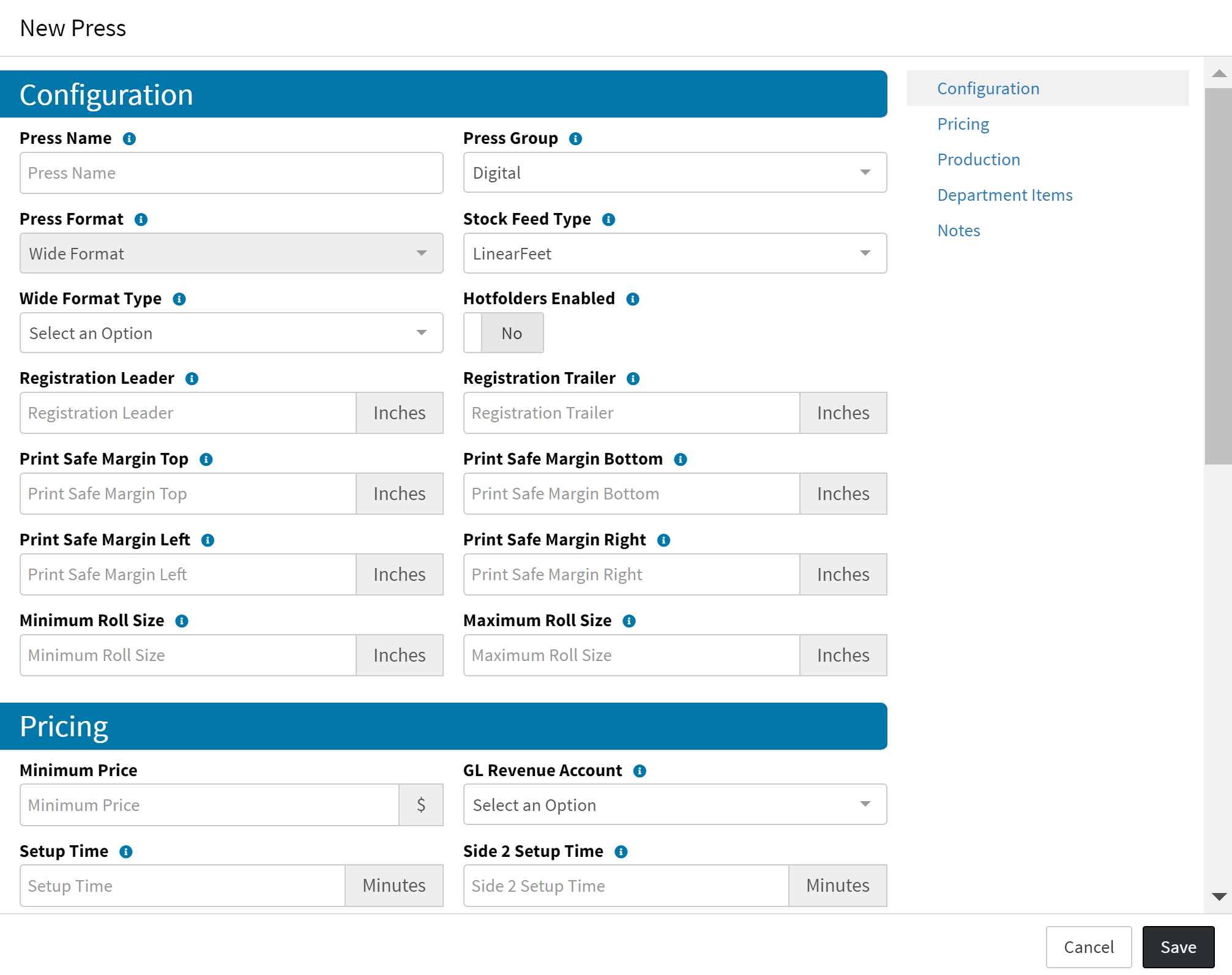

  3.      Complete the Configuration fields.


  Note: Measurements will appear in inches or centimetres depending on the Measurement Unit

           settings. (See Configuration-Measurement Units)

Field
Description
Name
Enter Name of press.
Group


Select a Group from the drop-down menu.

Note: These options can be modified. (See General-Group)
Format
Select Large Format press from the drop-down menu.

Stock Feed Type

This controls the press sheets on order items. The default is set to what is Specified by Stock. To change, select a different option from the drop-down menu.
Wide Format Type

Select a Board, Roll or Both from the drop-down menu.

Run Cost Per Hour

If you want to track the cost for your Press Operator to run this, just enter in the hourly wage. However, if you want to keep track of all of your costs (e.g. wage, press and hydro), then enter the total of all these costs.

Setup Time
Enter how long it takes to setup up Side 1 of the press and do a wash up.
Side 2 Setup Time
Enter how long it takes to setup Side 2 of the press and do a wash up.
Registration Leader

Enter the Registration Leader amount the press requires.

Registration Trailer
Enter the Registration Trailer amount the press requires.
Print Safe Margin Top

Enter the Print Safe Margin for the top of the page.

Print Safe Margin Bottom
Enter the Print Safe Margin for the bottom of the page.
Print Safe Margin Left
Enter the Print Safe Margin for the left side of the page.

Print Safe Margin Right
Enter the Print Safe Margin for the right side of the page.

Minimum Roll Size

Enter the Minimum Roll Size the press will accept.

Maximum Roll Size

Enter the Maximum Roll Size the press will accept.

Default Mode
Select the default mode for the press, High Quality or Production from the drop down.
Hotfolders Enabled
Default set to No. Toggle switch to Yes if Hotfolders will be enabled for use with this press.
HotFolder Directory
Enter the Hot Folder Directory path. Select {Test Connection} to confirm remote connection.
Notes
Enter any additional notes regarding the press, if applicable.
GL Revenue Account

Select an account option from the drop-down that you would like the price of the Press posted to.



Note: These options can be modified. (See Accounting-GL Revenue Account)



  4.     Select {Save}. The page will now show the name of the new press.



           Pricing and Markups can also be added before leaving this page.



           Note: The option to add additional pricing and markup information will be

           available once the Configuration information has been saved and the new
           press page generated. (See Production-Board/Roll, Wide Format-Hourly
           Rate, Wide Format-Duplex Price Modifier, Presses-Department Items, and
           General-Notes)
